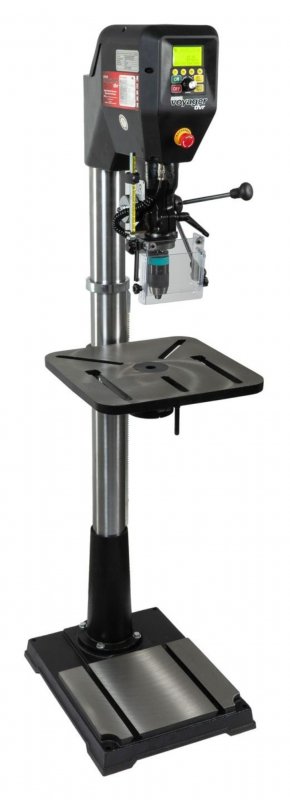

NOVA Voyager DVR 18" Drill Press
Item: TR58002
If you would like to view our machinery in person, please call 01302 744344 to book an appointment with our team.
NOVA Voyager ManualProduct Description
"Exceptional quality; quiet operation; easy to set up for every type of drill imaginable; does everything you could possibly want to do on a drill; the only drill press you will ever need." - Jonathan Salisbury, The Woodworker & Good Woodworking Magazine
New version including keyless drill chuck with locking function!
The world’s first smart drill press combines the best features of drill presses with state of the art technology to make your project work more efficient, fun and safer. The NOVA DVR Voyager 18" Drill Press is the most versatile drill press on the market, easily able to handle wood, metal, plastics and glass. It combines the proven technology with some great new features with intelligent Striatech ADAPTIVE CONTROL™ software that works for you to produce optimum conditions for your specific projects. The most innovative advancement since motors were first added to drill presses almost a century ago!
Specifications:
- Power output: 1.75HP / 2HP
- Power Supply Input: 110-120V, 10A (For 1.75HP output)
- 220-240V, 10-15A, 2HP (2HP output requires plug change)
- Overall Height: 70 5/8” (1794 mm)
- Overall Base Width: 17 5/8” (448 mm)
- Overall Base Depth: 22 3/4” (578 mm)
- Spindle to Table Min Distance: 6 1/8” (155 mm)
- Spindle to Table Max Distance: 28 1/2” (724 mm)
- Speed range: 50 – 5500 rpm
Each unit comes with a EU plug adaptor.
Customer Reviews
Specifications
DVR Motor:
- Type of motor: Switched Reluctance Motor
- Rated power output for 110v to 120v: 1250 W, 1.75 HP
- Rated power output for 220v to 240v: 1500 W, 2 HP
- Speed range: 50 – 5500 rpm
- Default Speed: 900 rpm
- Rotation direction: Bidirectional (FWD & REV)
- Power supply range: 115 V – 240 V, 50 Hz – 60 Hz
- Power Factor: PF ≥ 0.95
- Speed controller: PI speed regulation with adaptive control coefficients
- Three pre-set PI coefficient curves: Soft, Normal and Hard
- Work piece inertia measurement for PI speed controller adaptive control
- Torque and speed ramp functions
- Overload protection
- Under voltage protection
- Control board over-heat protection
NOVA Voyager:
- Overall Height: 70 5/8” (1794 mm)
- Overall Base Width: 17 5/8” (448 mm)
- Overall Base Depth: 22 3/4” (578 mm)
- Spindle to Table Min Distance: 6 1/8” (155 mm)
- Spindle to Table Max Distance: 28 1/2” (724 mm)
- Spindle to Base: 48” (1220 mm)
- Class F Winding Insulation. Industrial spec for long life
- Swing: 18”
- Spindle Travel: 6”
- Number of Spindle Speeds: Variable
- Speed Range: 50-3000rpm is default (option in settings to increase to 5500rpm)
- Spindle Taper: MT-2
- Table Size (wood working)(L x W): 16 1/2" x 16.1/2” (419mm x 419mm)
- Table Tilt (Deg.): -45° to +45°
- Table Rotation (Deg.): 360°
- Chuck Size: 5/8” (3-16mm)
- Column Diameter: 3.62” (92mm)
- Base Size (L x W): 22 1/4” x 17 1/2" (565mm x 445mm)
