NOVA Neptune Midi DVR Lathe Stand

Item: TR55264

Product Description

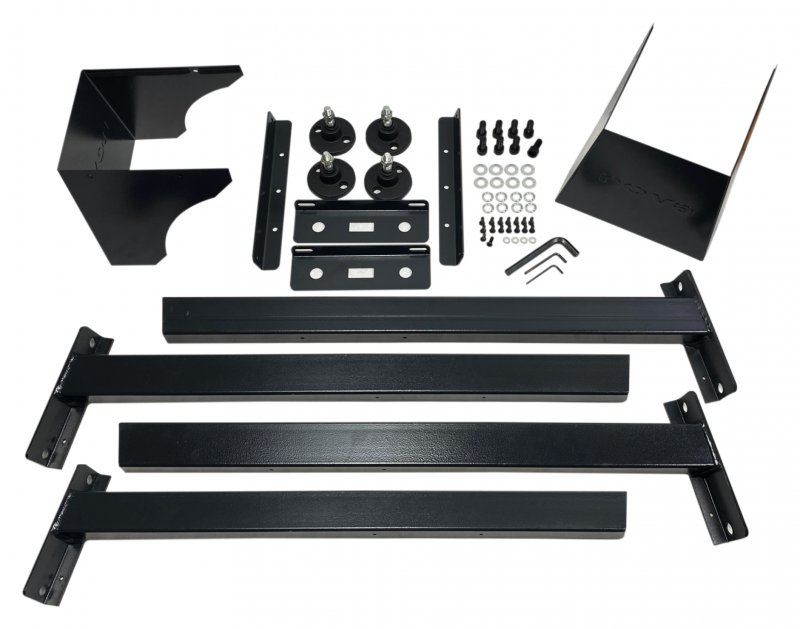

The Heavy-Duty Stand is the perfect accessory for your Neptune Benchtop evolution. Made from a mix of solid steel and reinforced Sheetmetal, this provides rigid strength and stability in a lightweight package. Comes standard with the NOVA Neptune Max. This stand can also be used on your NOVA 1624, Saturn or DVRXP Lathes.

Stand Size: Length 50.9″ (1292mm) x Width 19.3″ (490mm) x Height 32.2″ (818mm)

Stand Weight: 52.2LBS (25.5KGS)

View other products in Lathes »

Reviews
Specifications
Weight & Dimensions

Customer Reviews

Specifications

Bowl Turning Capacity
406mm/16″ onboard
737mm/29″ outboard (Using optional outrigger accessory)

Between Centers
Standard 610mm/24″(Extendable to as long as you want in 508mm/20″ increments, using optional bed extension accessory)

10 Favorite Speeds
Enables user to easily program in their top 10 speeds which is selectable at the touch of a button

Power Output
1.75 HP (115V) / 2 HP (220 V)

Speed Range
100 – 5,000RPM

Spindle Thread
M33 x 3.5 RH Tailstock 2MT Hollow

360° Swivel Head
360° Swivel and lock at any position, plus locating positions at 0, 22, 4 and 90°
High accuracy and easy swivel

Indexing
24 Division

Weight & Dimensions

Assembled Dimensions: 33” x 17” x 15” (838mm x 432mm x 381mm)

Assembled Weight: 125 lbs (56.70kg)
Shipped Dimensions: 36” x 19” x 17” (914mm x 483mm x 432mm)

Shipped Weight: 143 lbs (64.86kg)
